Cast Iron Flanged Ball Valve

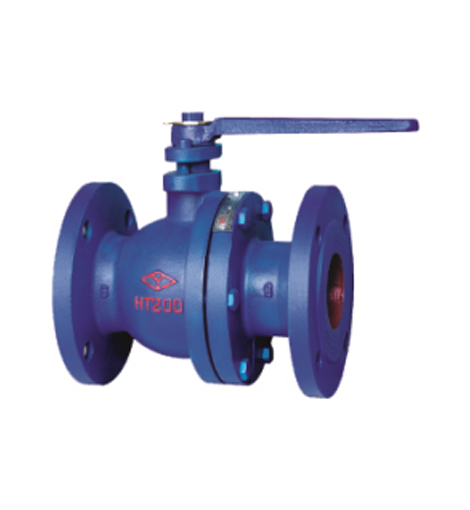

Name: Cast Iron Flanged Ball Valve
Brand: MstnLand International Company

MstnLand's series of Cast iron ball valves is used for opening and closing of pipeline with non-corrosive medium.

CONTACT

Downloads

Body material:	Cast iron
Size range:	DN 15- DN 200
Pressure rating:	1.6 MPa
Operating temperature:	0～150℃
End connection:	Flanged
Applicable medium:	Water, Oil，Steam
Mode of operation:	Manual
Applicable industry:	Water & Water Treatment Power generation Pulp & Paper Municipal
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB.
