Gate Valves

As a trustworthy gate valves supplier in China, MstnLand provides high performance different types of gate valve products, mainly include bolted bonnet wedge gate valves and pressure seal bonnet gate valves, which are widely used in gas, petrochemical, oil, offshore, power station and refining industries.


The gate in the industrial gate valve is for opening and closing purposes. Its motion direction is perpendicular to the direction of fluids. The gate valve can only be fully opened and fully closed, and can not be used for flow regulation. Therefore, when the types of gate valve is fully open, the flow channel is straight-through and the pressure loss difference is minimum. So gate valves can be used in many conditions.

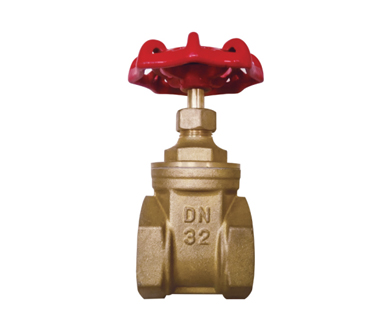

Brass Gate Valves
Brass Gate Valves
Brass Gate Valves

As a professional gate valve supplier in China, Mstnland provides high-quality brass gate valves for customers to choose from.

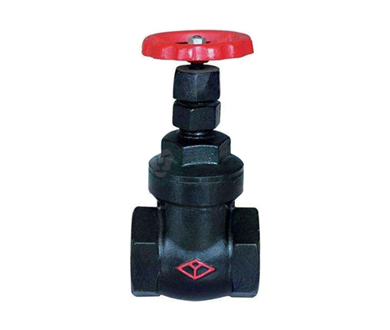

Cast Iron Gate Valves
Cast Iron Gate Valves
Cast Iron Gate Valves

MstnLand provides high performance gate valve products, mainly include bolted bonnet wedge gate valves and pressure seal bonnet gate valves, which are widely used in gas, petrochemical, oil, offshore, power station and refining industries.

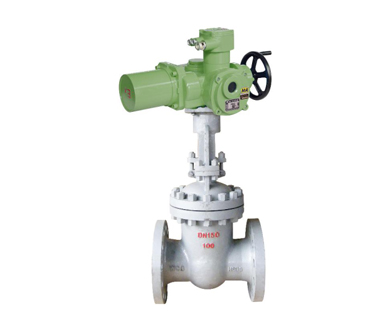

Cast Steel Gate Valves
Cast Steel Gate Valves
Cast Steel Gate Valves

According to the material, cast steel gate valves can be divided into carbon steel gate valve, stainless steel gate valve, low alloy steel gate valve, low temperature steel gate valve, etc. Various specific steel grades are commonly used under various cast steel gate valves as follows: 1. The grades of carbon steel gate valve are: WCA, WCB, WCC, LCB, etc.; the applicable temperature is -46 degrees to 425 degrees. 2. Stainless steel gate valve grades: 301 stainless steel, CF8 stainless steel, CF8M stainless steel, etc.; the applicable temperature is -198 degrees to 816 degrees. 3. Low-alloy steel is divided into high-temperature alloy steel and high-strength low-alloy steel, among which high-temperature alloy steel is often referred to as chrome-molybdenum steel. Casting grades of chrome molybdenum steel gate valve: ZG1Cr5Mo, ZG15Cr1MoV, ZG20CrMoV, WC6, WC9, C12A, etc. The applicable temperature is 550 degrees to 750 degrees. The temperature applicable to each specific

Forged Steel Gate Valves
Forged Steel Gate Valves
Forged Steel Gate Valves

According to different materials, forged steel gate valves can be classified as: carbon steel, stainless steel, duplex stainless steel, alloy and other special materials. According to different nominal pressure classes, forged steel gate valves can be classified as: Class150, Class 300, Class 400, Class 600, Class 800, Class 900, Class 1500 and Class 2500. MstnLand forged steel gate valves are mostly reduced bore design, compared with the same size cast steel gate valve, the amount of flow is slightly smaller, but the pressure and temperature range are higher than the cast steel valve. Its sealing performance is much better than the cast steel gate valve. It has a longer service life and the flow direction of the medium is not restricted.

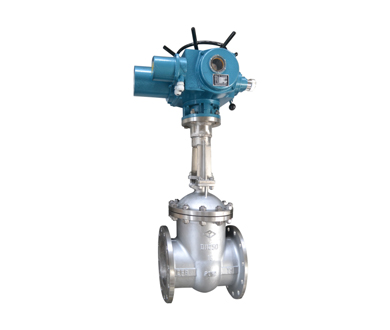

Stainless Steel Gate Valves
Stainless Steel Gate Valves
Stainless Steel Gate Valves

According to sealing surface allocation, stainless gate valve can be divided into wedge gate valve and parallel disc valve. wedge gate valve can be also divided to single disc, double disc and flexible disc . Parallel disc valve can be divided into single disc and double disc. It can be divided into rising stem gate valve and non-rising stem gate valve based on the thread location.

Rising Stem Gate Valves
Rising Stem Gate Valves
Rising Stem Gate Valves

As a valve supplier in China, Mstnland provides high-quality rising stem gave valves for customers to choose from.

Non-rising Stem Gate Valves
Non-rising Stem Gate Valves
Non-rising Stem Gate Valves


As one of the most professional non-rising stem gate valve manufacturers in China, Mstnland provides different kinds of non-rising stem gate valves for customers to choose from.

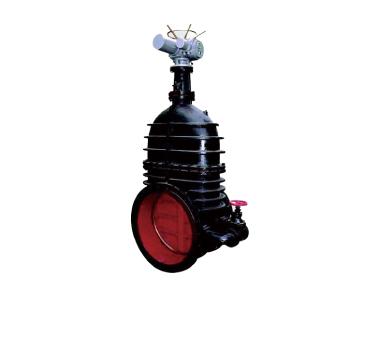

Double Disk Parallel Gas Gate Valves
Double Disk Parallel Gas Gate Valves
Double Disk Parallel Gas Gate Valves

As one of the most professional double disc gate valve manufacturers in China, Mstnland provides different kinds of double disk parallel gas gate valves for customers to choose from.

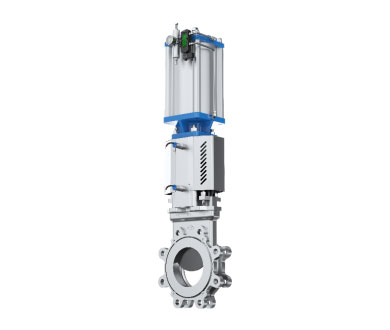

Knife Gate Valves
Knife Gate Valves
Knife Gate Valves

As one of the most professional knife gate valve suppliers in China, Mstnland offers three kinds of knife gate valve for customers to choose from.

Bellows Sealed Gate Valves
Bellows Sealed Gate Valves
Bellows Sealed Gate Valves

As a valve supplier in China, Mstnland provides high-quality bellows sealed gate valves for customers to choose from.

Types of Gate Valves Based on Material


When selecting the gate valve, you should pay more attention to the valve body material which should be determined by the actual working conditions such as temperature, pressure & medium. We are a professional Chinese gate valve manufacturer who supplies gate valves made of stainless steel, wcb, carbon steel, forged, cryogenic, etc. And based on the body materials, you can find different types of gate valves are for sale now in Mstnland.

Cast Iron Gate Valves
Cast Iron Gate Valves
Cast Iron Gate Valves

MstnLand provides high performance gate valve products, mainly include bolted bonnet wedge gate valves and pressure seal bonnet gate valves, which are widely used in gas, petrochemical, oil, offshore, power station and refining industries.

Cast Steel Gate Valves
Cast Steel Gate Valves
Cast Steel Gate Valves

According to the material, cast steel gate valves can be divided into carbon steel gate valve, stainless steel gate valve, low alloy steel gate valve, low temperature steel gate valve, etc. Various specific steel grades are commonly used under various cast steel gate valves as follows: 1. The grades of carbon steel gate valve are: WCA, WCB, WCC, LCB, etc.; the applicable temperature is -46 degrees to 425 degrees. 2. Stainless steel gate valve grades: 301 stainless steel, CF8 stainless steel, CF8M stainless steel, etc.; the applicable temperature is -198 degrees to 816 degrees. 3. Low-alloy steel is divided into high-temperature alloy steel and high-strength low-alloy steel, among which high-temperature alloy steel is often referred to as chrome-molybdenum steel. Casting grades of chrome molybdenum steel gate valve: ZG1Cr5Mo, ZG15Cr1MoV, ZG20CrMoV, WC6, WC9, C12A, etc. The applicable temperature is 550 degrees to 750 degrees. The temperature applicable to each specific

Forged Steel Gate Valves
Forged Steel Gate Valves
Forged Steel Gate Valves

According to different materials, forged steel gate valves can be classified as: carbon steel, stainless steel, duplex stainless steel, alloy and other special materials. According to different nominal pressure classes, forged steel gate valves can be classified as: Class150, Class 300, Class 400, Class 600, Class 800, Class 900, Class 1500 and Class 2500. MstnLand forged steel gate valves are mostly reduced bore design, compared with the same size cast steel gate valve, the amount of flow is slightly smaller, but the pressure and temperature range are higher than the cast steel valve. Its sealing performance is much better than the cast steel gate valve. It has a longer service life and the flow direction of the medium is not restricted.

Stainless Steel Gate Valves
Stainless Steel Gate Valves
Stainless Steel Gate Valves

According to sealing surface allocation, stainless gate valve can be divided into wedge gate valve and parallel disc valve. wedge gate valve can be also divided to single disc, double disc and flexible disc . Parallel disc valve can be divided into single disc and double disc. It can be divided into rising stem gate valve and non-rising stem gate valve based on the thread location.

Brass Gate Valves
Brass Gate Valves
Brass Gate Valves

As a professional gate valve supplier in China, Mstnland provides high-quality brass gate valves for customers to choose from.

Types of Gate Valves Based on Structure


Based on the structure, the gate valve can be divided into rising stem gate valve and non-rising stem gate valve. According to the difference of disk form and structure, gate valve can be further divided into wedge gate valve,  parallel disk gate valve, single disk gate valve and double parallel disk gate valve. The parallel disk are mostly solid while the wage includes both solid and flexibility.

Gate Valves Working Principle

The opening and closing part of gate valve is a flashboard. Its direction of motion is perpendicular to the direction of fluid. A gate valve is usually used to cut off the medium. The entire flow channel is a straight-through passage when gate valve is fully open, and the pressure loss of the medium running is minimum. Gate valve is usually divided into several types by seal part mode, such as wedge gate valve, plate gate valve, parallel 2-flashboard gate valve and wedge 2-flashboard gate valve. Gate valve is usually used under working conditions in which the valve is not opened or closed frequently, and supports flashboard fully open or fully closed. It's not suitable for adjustment or throttling. Various materials may be selected for transportation of water, steam, oil, natural gas, nitric acid, acetic acid, oxidant and urea.

Gate Valves Working Principle
