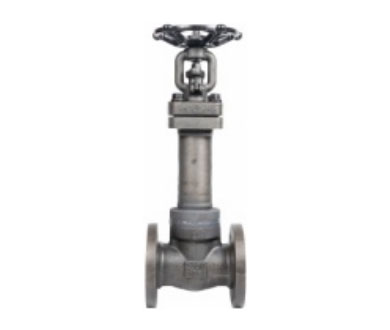

Bellows Sealed Gate Valves

The bellows sealed gate valve, also known as the cut gate, is the most widely used valve. The opening and closing parts of the bellows gate valve are plug-shaped discs. The sealing surface is flat or conical, and the disc moves linearly along the center line of the fluid. The movement form of the valve stem includes a lifting rod type (the valve stem rises and falls, and the handwheel does not rise and fall), and a lifting rotating rod type (the handwheel rotates and lifts together with the valve rod, and the nut is arranged on the valve body). The bellows sealed gate valve is only suitable for fully open and fully closed, no adjustment and throttling are allowed. This type of valve should generally be installed horizontally in the pipeline.


Types of Bellows Sealed Gate Valves for Sale

As a valve supplier in China, Mstnland provides high-quality bellows sealed gate valves for customers to choose from.

Working Principle of Bellows Sealed Gate Valves

The bellows sealed gate valve is a forced-sealing valve, so when the valve is closed, pressure must be applied to the valve disc to ensure the sealing surface to not leak. When the medium enters the valve body from under the valve disc, the resistance that the operating force needs to overcome is the friction force between the valve stem and the packing and the thrust generated by the pressure of the medium. The force to close the valve is greater than the force to open the valve, so the diameter of the stem should be large, otherwise the failure of the top of the valve stem will occur. In recent years, since the emergence of self-sealing valves, the medium flow direction of the gate valve has been changed from the top of the valve disc into the valve cavity. At this time, under the action of the medium pressure, the force to close the valve is small, while the force to open the valve is large, so the diameter of the valve stem can be reduced accordingly. At the same time, under the action of the medium, this form of valve is also tighter.


Advantages of Bellows Sealed Gate Valves

The bellows sealed gate valve adopts a unique double bellows seal gate valve, which completely eliminates the problem of stem packing seal leakage and meets the most serious leakage level requirements. In the unfortunate event that the bellows fails, the packing seal on the stem provides a secondary seal to prevent leakage.

The bellows sealing structure not only eliminates leakage, but also requires no maintenance. If the internal parts need to be replaced, it is convenient, simple and fast, and all parts can meet the standard exchange.

There are grease fill holes in the bonnet to lubricate the stem and nut bushings.

The bellows sealed gate valve adopts a unique spherical cone surface valve core instead of the traditional plane valve core, which can be roughly controlled by manual flow. The surface of the valve core is hardened, which improves the sealing performance. It can be installed vertically below DN150, and the valve core can be adjusted by itself.
