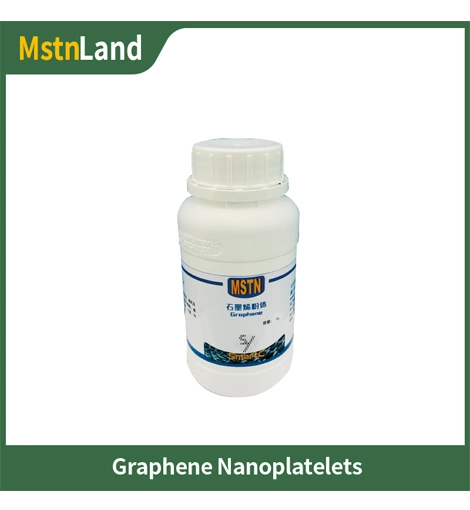

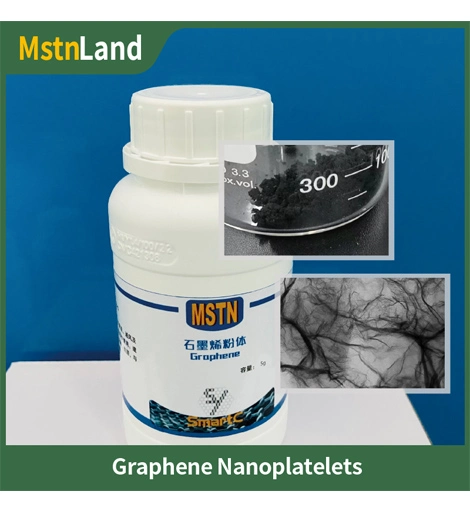

Graphene Nanoplatelets


Product Description

The graphene nanoplatelets(GNP) produced starting from natural flake graphite with physical stripping process to get graphene slurry, then with vacuum freeze-dried process to get the powder,with the advantages of high purity, large specific surface area and high stability.The graphene nanoplatelets stripped by physical method have no oxidation process of strong oxidants, no lattice defects introduced, with excellent electrical conductivity.

Technical Specifications





Bulk density (g/cm3)


Specific surface area (m2/g)


Particle size( D50=μm)



Black powder

Water content (%)


Preparation method

By physical method

Raw material

Natural flake graphite

Product Specification


Product Advantages

  • With high quality,no lattice defects introduce.

  • Low impurity content: fully control of metal impurity content to meet customers' high purity requirement.

  • Good electrical conductivity: graphene nanoplatelets prepared by physical method has fewer defects, with excellent electrical and thermal conductivity.

  • Using vacuum freeze-drying,the powder has good redispersibility

Product details

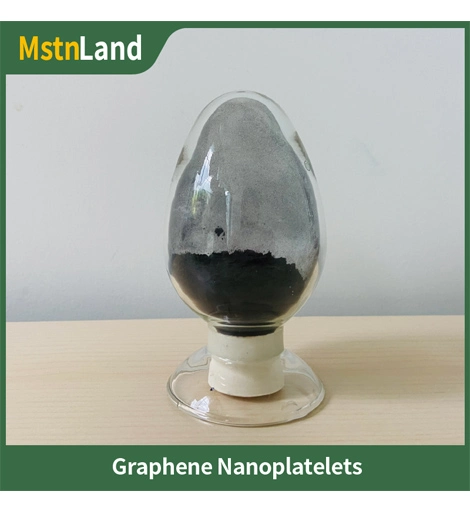

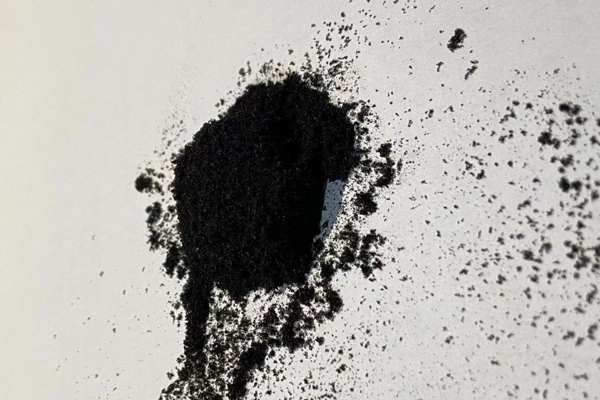

Graphene nanoplatelets

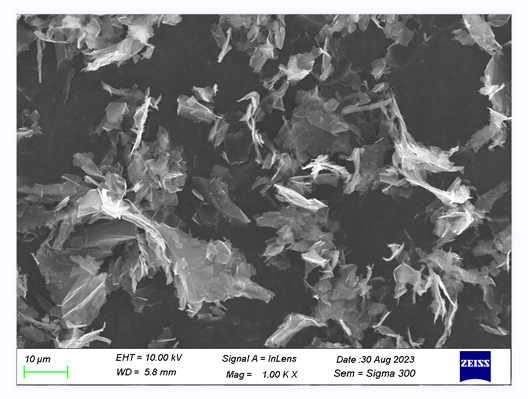

Scanning electron microscopy of graphene nanoplatelets

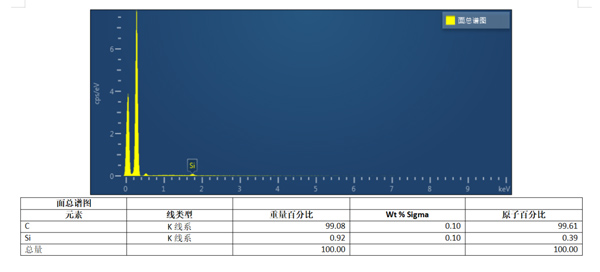

Elemental analysis diagram of graphene nanoplatelets



Applicable fields

Graphene-based battery: Using graphene as a lithium-ion battery conductive agent can build a conductive network that is "soft, thin and dense", greatly reducing the amount of conductive agent, significantly improving the volume energy density and charge and discharge performance of the battery, which means that more energy can be stored in the same space, improving the endurance of mobile phones and electric vehicles.


Textile field: Graphene materials and ordinary textiles’s effective combination, can make the textile retain their own performance ,meanwhile access to graphene’s one or several special properties, such as conductive, flame-retardant, antibacterial, anti-ultraviolet ray, anti-electromagnetic radiation, magnetic therapy, anionic health care, etc., can be applied in the field of special protection, smart fabrics and so on;


Construction materials: Graphene construction materials are formed by using graphene as the core and compositing with other materials through its high strength and strain hardening properties. The characteristics of graphene flakes can be utilized to strengthen the thermal conductivity and strength of the material, while effectively reducing the density of the material. Usually in the concrete material to increase a strength level, a single square of concrete need to increase 30kg cement, if mixed with graphene, then to achieve the same strength level, can save cement about 10%. The advantages are high strength, good thermal conductivity, good emissivity and oxidation resistance.In 2018, a hospital in London, UK, applied a roof built with graphene material. This roof utilizes special 3D printing and steel structure, and through the high thermal conductivity of graphene material, the temperature inside the hospital will be drastically reduced in the summer, saving the hospital's air conditioning energy consumption.


Graphene anti-corrosion coatings: Graphene material in the sheet diameter is very small can still maintain a great diameter-thickness ratio, add a small amount of graphene in the coating on the line to effectively form a lap, the formation of a more complete shielding layer, delay the penetration of corrosive media, greatly reducing the permeability of chloride ions.On the other hand, the use of graphene's high conductivity, add a very small amount of zinc powder coating (<0.3%), the coating and zinc powder can form a conductive network, improve the utilization of zinc powder, so that the entire coating relative to the steel to become the "anode", and significantly improve the cathodic protection performance of the zinc powder primer.


Graphene lubricant: Traditional lubricant additives usually contain sulfur, phosphorus, chlorine and other elements, to bring greater harm to the environment, in order to create a green and efficient lubricant products, graphene has become the ideal choice, graphene lubrication and anti-wear performance is very excellent, when the number of layers of 2 ~ 3 layers, its friction is not zero but almost zero. Graphene lubricant can change the friction between the metal rotating parts into sliding between the layers of graphene sheets, and at the same time, it can also fill and repair the uneven pits on the metal surface to meet the dual needs of anti-wear and drag reduction, and prolong the service life of the engine. At the same time, based on graphene's antioxidant and anti-volatility, graphene lubricant can also save fuel and reduce carbon emissions, which is conducive to environmental protection. Currently several categories of graphene materials can achieve the effect of lubrication, but considering the problem of dispersion, the dispersion of graphene oxide is more advantageous.


The field of health: Graphene inherent properties determine that it can produce a wavelength of 5 ~ 15μm range of far-infrared radiation energy, and 4 ~ 15μm of far-infrared light is essential for the survival of plants and animals, "the light of life", biological tissues, cells and molecules of the chemical bond vibration, resonance wavelengths are located in most of the 4 ~ 15μm wavelength band. Most of the resonance wavelengths are located in the 4~15μm band when the chemical bonding of biological tissues and cells vibrate, which is basically coincident with the far infrared rays radiated by graphene, thus producing "resonance absorption". Far infrared rays have a strong penetrating ability, not only to the surface of the object, but also can be transported to the object inside the heat, absorbed by the human body can penetrate the skin 3 ~ 5nm, is the temperature of the deep skin rises, to promote blood circulation, and play a role in health care.


Masterbatch manufacturing industry: Graphene and its graphene oxide doping can change the physical and mechanical properties of polymers, graphene masterbatch as an additive can effectively change the tension, deformation and impact resistance of plastics, and enhance the resistance to ultraviolet rays. The incorporation and concentration of graphene and its derivatives can change the physical and mechanical properties of the polymer to be processed. Addition of the masterbatch to different polymers more or less improves the final properties of the material, for example:

  • Polypropylene (PP) with polypropylene-graphene masterbatch (MB-PP/GO) incorporation improves tensile strength (8%) and fracture rate (29%).

  • Additive for polyethylene (PE) with polyethylene-graphene masterbatch (MB-PE/GO) improves tensile strength (17%), flexural strength and breaking strength (66%).

  • Additives to polyethylene terephthalate (PET) with polyethylene terephthalate-graphene masterbatch (MB-PET/GO) improve moisture resistance, increase tensile strength (72.2%) and improve impact resistance.

  • Additive for polycarbonate (PC) with polycarbonate-graphene masterbatch (MB-PC/GO) improves moisture resistance and increases rupture resistance (276%).
