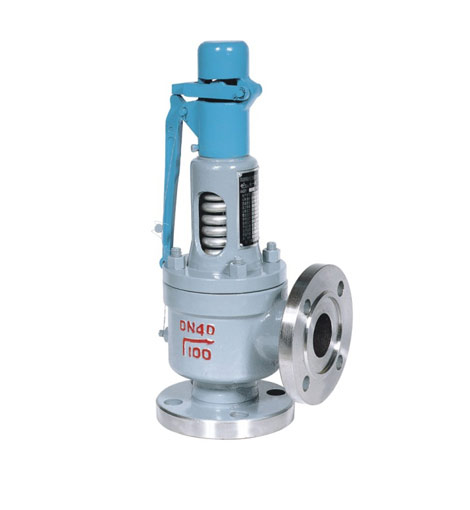

Stainless Steel Spring Loaded Full Bore Type Safety Valve With Handle

Stainless Steel Spring Loaded Full Bore Type Safety Valve With Handle

MstnLand's series of spring loaded full bore type with lever safety valve, A48Y type are used for the equipment and pipeline of steam, air, etc. medium what the working temperature are less than 350℃. A44Y type are used for the equipment and pipeline of air, petroleum gas, etc. medium what the working temperature are less than 300℃. Take for extra pressure protection devices.

CONTACT

Specifications

Body material:

Stainless steel, WCB, Special alloy

Size range:

DN20-DN150

Pressure rating:

1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa, 10MPa

Operating temperature:

≤350℃(A48Y), ≤300℃(A44Y),

End connection:

Flanged

Applicable medium:

Steam, Air, Gas

Mode of operation:

Automatic

Applicable industry:

Chemical & Petrochemical

Water & Water Treatment

Power generation

Pulp & Paper

Oil & Gas

Municipal

Design & Manufacture:

API, ASME, ANSI, GB.
