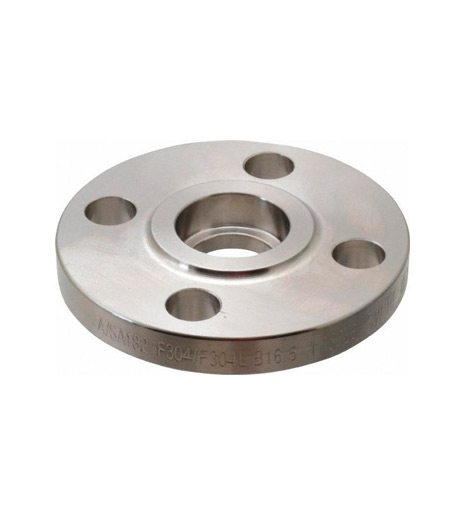

Socket Welding Flange

Socket Welding Flange

MstnLand's series of socket welding flange refers to the flange that the pipe end is inserted into the flange ring ladder and welded at the pipe end and outside. There are two kinds of neck. The flange with neck has good rigidity, small welding deformation and good sealing. It can be used in the pressure range of 1.0 ~ 10.0MPa. The type B flange for vessels is also a socket welding flange, which is used in occasions with high sealing requirements. In design, socket welding flange can be checked as integral flange.

CONTACT

Body material:

Carbon Steel, Alloy Steel, Stainless Steel

Size range:

1/2"~3"

Pressure rating:

CLASS 150lb~1500lb

Sealing surface

FF, RF, MFM, TG, RTJ

Applicable medium:

Water, Steam≤1.0MPa, Oil&Gas

Applicable industry:

Chemical & Petrochemical,

Oil & Gas,

Mining & Minerals,

Power generation,

Water & Water treatment,

General industrial,

Municipal,

Heating & Ventilation,

Marine & Offshore,

Pulp & Paper.

Design & Manufacture:

API, ASME, ASTM, ANSI, BS, EN, DIN, JIS, ISO,

SANS, GOST, GB.
