cast iron butterfly balance valve 1

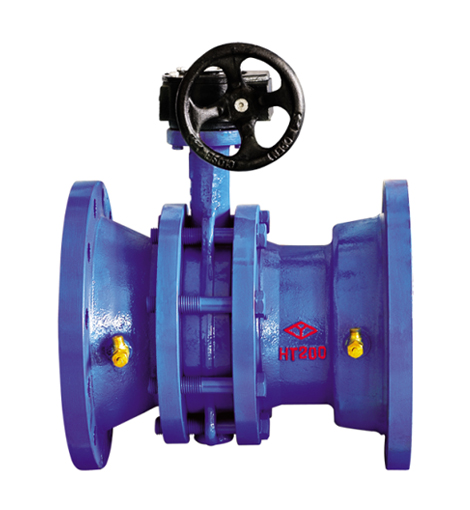

Cast Iron Butterfly Balance Valve

MstnLand's series of butterfly balance valves can be used in the pipeline and equipment of non-corrosive medium for blocking, connecting and regulating the flow. It's an ideal new type of energy saving product, it has good flow characteristics according to balancing valve working principle. It can reasonably distribute the flow and solve the problem of hydraulic imbalance in the pipe network, it can accurately adjust the pressure drop and flow, improve the flow state of the medium in the pipe network so as to achieve the purpose of medium balance.


Hot Topics:

Balancing Valve Working Principle

Rising Stem Gate Valve Vs Non Rising Stem Gate Valve



CONTACT

Specifications

Downloads

Body material:

Gray cast iron HT200

Size range:

DN250～350

Pressure rating:

1.6MPa

Operating temperature:

0～100℃

End connection:

Flanged

Applicable medium:

Water, Sewage

Mode of operation:

Manual

Applicable industry:

Water & Water Treatment, Power generation, Pulp & Paper, Municipal

Design & Manufacture:

API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
