Flanges


Pipe flanges are widely used as a popular category of pipe fittings. A flange is used to mechanically connect two pipes together. It can also be used to connect a pipe to a tee, valve, choke or any other piece of equipment. Flanges are available in round, square, and rectangular shapes. In some cases, flanges are usually in the shape of a ring or a plate to form a rim at the end of a pipe when fastened to the pipe. This is an example of closet flange.


A flange can also be a plate for covering or closing the end of a pipe. This is called a blind flange. Thus, flanges are considered the projecting or internal components which are used to support mechanical parts. They are like rims which are used to strengthen the mechanical part or they are a means of attaching that part to another part or surface.


Blind Flange
Blind Flange
Blind Flange

MstnLand's series of blind flange is a flange without hole in the middle, which is used to seal the pipe plug. The function is the same as welded head and threaded pipe cap, except that blind ...

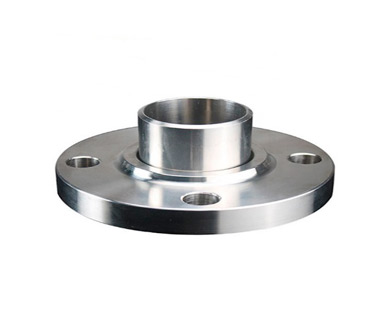

Lap Joint Flange
Lap Joint Flange
Lap Joint Flange

MstnLand's series of lap joint flange is a two‐piece device, much like a welded flange, but also like a loose sliding flange. One is a sleeve called "the short end" and the other is a...

Long Welding Neck Flange
Long Welding Neck Flange
Long Welding Neck Flange

MstnLand's series of long welding neck flange is also known as long diameter flange, belongs to the American standard flange standard system. It is a form of ANSI flange and an extended form of...

Slip-on Flange
Slip-on Flange
Slip-on Flange

MstnLand's series of slip-on flange is a kind of flange which is loose on the flange of vessel or pipeline. Flange is a part of the shaft connected with each other, which is used for...

Socket Welding Flange
Socket Welding Flange
Socket Welding Flange

MstnLand's series of socket welding flange refers to the flange that the pipe end is inserted into the flange ring ladder and welded at the pipe end and outside. There are two kinds of neck.

Threaded Flange
Threaded Flange
Threaded Flange

MstnLand's series of threaded flange is a kind of non welding flange which processes the inner hole of ordinary flange into pipe thread and connects with threaded pipe.

Welding Neck Flange
Welding Neck Flange
Welding Neck Flange

MstnLand's series of welding neck flange refers to the flange with neck and round pipe transition and butt welded with the pipe. It is not easy to deform, well sealed and applied...

Plate Flange
Plate Flange
Plate Flange

MstnLand's series of plate flange is the most common flange. Welding form: plate flange is to insert the pipe into the flange for welding.

Spectacle Blind
Spectacle Blind
Spectacle Blind

MstnLand's series of spectacle blind is a kind of pipe part, which is mainly for the convenience of maintenance. You can paint the upper half of "8" black. In appearance, half is a blind...

Orifice Flange
Orifice Flange
Orifice Flange

MstnLand's series of orifice flange is the orifice plate connected to the pipeline by the orifice plate flowmeter (the measuring part of the orifice plate flowmeter). The two flanges fix the...

Tube Sheet
Tube Sheet
Tube Sheet

MstnLand's series of tube sheet is to drill holes slightly larger than the outer diameter of the pipe on the circular steel plate. It is a round steel that plays the role of fixing the pipe...

Anchor Flange
Anchor Flange
Anchor Flange

MstnLand's series of anchor flange combines two butt welding flanges whose appearance is like bolt connection, cancels the sealing gasket, and makes an integral forged steel flange.

Swivel Flange
Swivel Flange
Swivel Flange

MstnLand's of swivel flange, the outer ring allows 360 ° rotation centered on the inner ring, so as to quickly adjust and align the bolt hole with the matched standard flange.

Reducing Flange
Reducing Flange
Reducing Flange

MstnLand's reducing flanges are a type of specialty flange that is commonly used on projects that need the joining of multiple diameter pipes. Weld-neck reducing flanges, slip-on reducing flanges,...

Loose Flange
Loose Flange
Loose Flange

MstnLand's series of loose flange is usually produced with the size ranging between DN15‐DN600. Loose flange is a two-piece component. The first piece is known as a stub end and the second piece ...


Flange Connection


Offering a reliable way to connect pipe systems with the various equipment, valves, and other components of virtually any processing system, flanges are the second most used joining method after welding.

Using flanges adds flexibility when maintaining piping systems by allowing for easier disassembly and improved access to system components.

A typical flanged connection is comprised of three parts:

  • Pipe Flanges

  • Gasket

  • Bolting

In most cases, there are specific gasket and bolting materials made from the same, or approved materials as the piping components you wish to connect. Stainless Steel flanges are some of the most common. However, flanges are available in a wide range of materials so matching them with your needs is essential.

Other common flange materials include Monel, Inconel, Chrome Moly, and many others depending on the application.

The best option for your needs will depend on both the system in which you intend to use the flange and your specific requirements.
