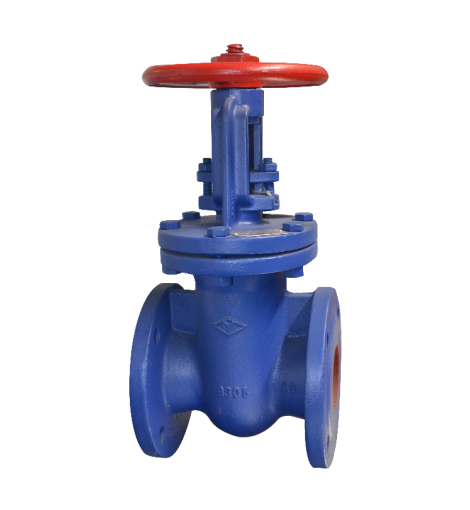

Cast Iron Flanged Rising Stem Gate Valve

Name: Cast Iron Flanged Rising Stem Gate Valve
Brand: MstnLand International Company

MstnLand's series of cast iron rising stem gate valves are important device for controlling the flow of medium in industrial pipelines. It can be used for the opening and closing of pipelines and equipment in non-corrosive media, generally not used for throttling operation.

Hot Topics:

https://www.mstnland.com/balancing-valve-working-principle.html

https://www.mstnland.com/rising-stem-gate-valve-vs-non-rising-stem-gate-valve.html

CONTACT

Product Specifications

Downloads

Body material:	Gray cast iron / Ductile cast iron
Size range:	DN50～600
Pressure rating:	1.0～1.6MPa
Operating temperature:	-10～120℃
End connection:	Flanged
Applicable medium:	Water, Sewage, Oil
Mode of operation:	Manual
Applicable industry:	Water & Water treatment, Power generation, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
