The Function for Single-port Exhaust Valve and the Double-ports Exhaust Valve


Exhaust valve is a special valve used to prevent negative pressure in the process of stopping the pump water hammer. It is installed in the raised part of the pipeline, inhale air when the pipeline's pressure is below atmospheric pressure; exhaust air when the pipeline's pressure rises above atmospheric pressure. Such valves don't allow fluid to escape into the atmosphere and have the function of closing automatically when removing air from the pipe.


The Function for Single-port Exhaust Valve and the Double-ports Exhaust Valve


The Function for Single-port Exhaust Valve and the Double-ports Exhaust Valve

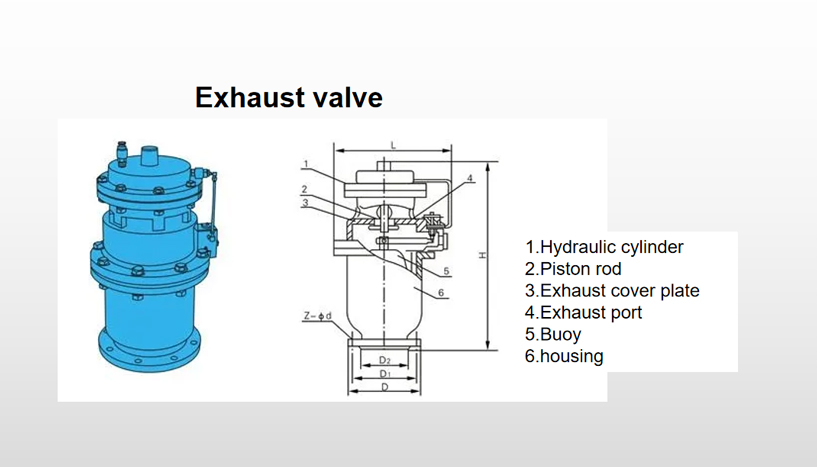

There are single-port exhaust valve and the double-ports exhaust valve two kinds, their function as below:

Single-port exhaust valve is different with double-ports exhaust valve. The single-port one is opened and closed rely on the gravity of the buoy to move the lever up and down; the double-ports exhaust valve make the piston open and close rely on the air discharge and valves ponding.


The Function for Single-port Exhaust Valve and the Double-ports Exhaust Valve


Introduce for single-port exhaust valve:

On the state of exhausting, because of the gravity function, the buoy will pull down one end of the lever, the lever is in the tilt state at this moment and will be a gap in the contact part between lever and the exhaust hole. So the air will be discharged through the gap. As the air discharging, the water level rises, the buoy rises based on water, the lever’s seal face presses the upper of exhaust hole gradually until all exhaust hole are blocked.


The Function for Single-port Exhaust Valve and the Double-ports Exhaust Valve



When the water start to fill in the pipe, plug stays in the open position and exhaust a lot. When the air all exhaust out, valves ponding, float ball is floating, the plug stays in the closed position, stop exhaust air. When the water in the pipe is normally transported, if small amount of air gathered to a certain extent, the water level drops and floating ball drops with it. The air is discharged from the small ball at this time. When the pump stops, the water in the pipe is empty or caused the negative pressure, the plug will be opened quickly and will inhale air to ensure the pipeline is completed.
