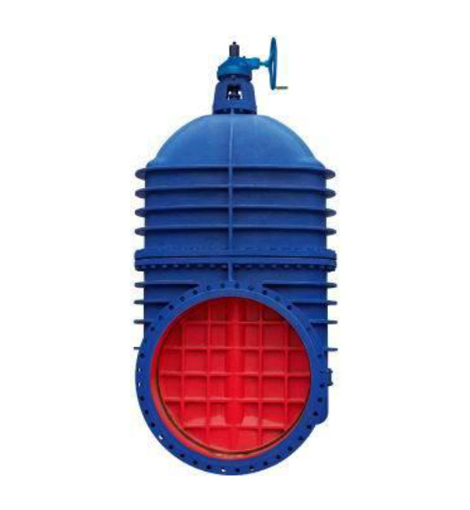

Worm Gear Non-rising Stem Wedge Gate Valve

Name: Worm Gear Non-rising Stem Wedge Gate Valve
Brand: MstnLand International Company

MstnLand's series of non-rising stem wedge gate valves are important device for controlling the flow of medium in industrial pipelines. It can be used for the opening and closing of pipelines and equipment in non-corrosive media, generally not used for throttling operation.

Hot Topics:

https://www.mstnland.com/balancing-valve-working-principle.html

https://www.mstnland.com/rising-stem-gate-valve-vs-non-rising-stem-gate-valve.html

CONTACT

Product Specifications

Downloads

Body material:	Gray cast iron/ Ductile cast iron/ Ni-Cr ductile iron
Size range:	DN50～1600
Pressure rating:	1.0MPa
Operating temperature:	-10～100℃
End connection:	Flanged
Applicable medium:	Water, Sewage, Oil
Mode of operation:	Manual
Applicable industry:	Water & Water treatment, Power generation, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
