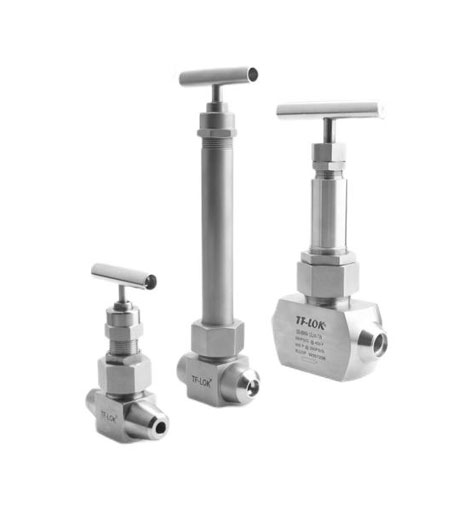

Ultra-low Temperature Needle Valve

Ultra-low Temperature Needle Valve

MstnLand's series of Ultra-low temperature needle valve is made of stainless steel as the main material, completely avoid the sealing deformation and leakage in the process of use, impregnated polytetrafluoroethylene asbestos as the filler with flexible graphite as the sealing material, this material is not permeable to gas and liquid. In the thickness of 10%-15% of the elastic fastening pressure can be achieved to seal, with self-lubricating as a filler can prevent the packing and stem wear.

CONTACT

Specifications

Body material:

Stainless steel

Size range:

DN5-DN50

Pressure rating:

≤10.0 Mpa

Operating temperature:

-54°C~649°C (-65°F~1200°F)

End connection:

Threaded, Ferrule, Welded

Applicable medium:

LPG, LNG, CNG

Mode of operation:

Manual

Applicable industry:

Chemical & Petrochemical

Oil & Gas

Design & Manufacture:

ASME B16.34, ASME B16.5, ASME B16.11
