Internal Thread Lift Bottom Check Valve

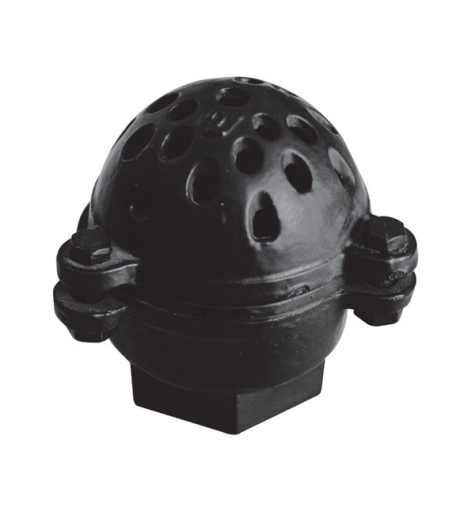

Name: Internal Thread Lift Bottom Check Valve
Brand: MstnLand International Company

MstnLand's series of internal thread lift bottom check valves installed at the bottom of the water pump suction pipe, can prevent the media flow back automatically.

CONTACT

Downloads

Body material:	Gray cast iron HT200
Size range:	DN15～50
Pressure rating:	0.25MPa
Operating temperature:	0～50℃
End connection:	Threaded
Applicable medium:	Water
Mode of operation:	Manual
Applicable industry:	Water & Water treatment, Power generation, Pulp & Paper, Municipal, Heating & Ventilation
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
