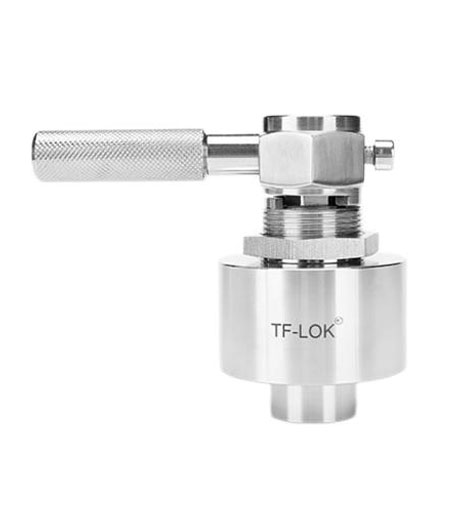

Instrument Plug Valve
MstnLand's series of instrument plug valve is plunger shaped and opens or closes by rotating 90 degrees so that the channel on the plug is connected with the channel on the valve body or separated.
CONTACTMstnLand's series of instrument plug valve is plunger shaped and opens or closes by rotating 90 degrees so that the channel on the plug is connected with the channel on the valve body or separated.
CONTACTBody material: | Carbon steel, Stainless steel, Brass, Alloy steel 400 (monel) |
Size range: | DN3-DN50 |
Pressure rating: | ≤20.7MPa |
Operating temperature: | -23℃~204℃(-10℉~400℉) |
End connection: | Threaded, Welded |
Applicable medium: | Water, Steam, Oil |
Mode of operation: | Manual |
Applicable industry: | Chemical & Petrochemical Oil & Gas Heating & Ventilation |
Design & Manufacture: | ASME B16.34, ASME B16.11, ASME B16.25 |
