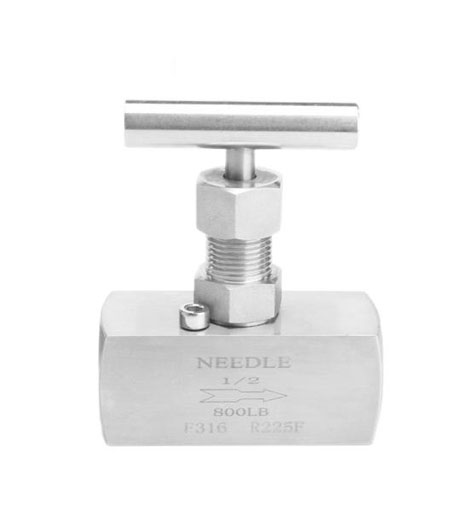

High Pressure Needle Valve

Name: High Pressure Needle Valve
Brand: MstnLand International Company

MstnLand's series of High pressure needle valve has good tightness and long service life. Even if the sealing surface is damaged, it only needs to replace the vulnerable parts to continue to use. Needle valve has the advantages of convenient installation and disassembly, fastening connection, fire prevention, explosion-proof and high pressure resistance, good sealing performance and so on. It is an advanced connection valve in power station, oil refining, chemical equipment and instrument measuring pipeline.

CONTACT

Types of High Pressure Needle Valve

Body material:	Carbon steel, Stainless steel, Brass, Alloy steel 400 (monel) ,Dual-phase steel2205
Size range:	DN15-DN50
Pressure rating:	41.3MPa
Operating temperature:	-29～425℃
End connection:	Threaded, Welded, Ferrule
Applicable medium:	Water, Steam, Oil, Sea water, Mildly corrosive medium
Mode of operation:	Manual
Applicable industry:	Chemical & Petrochemical Oil & Gas
Design & Manufacture:	ASME B16.34, ASME B16.11, ASME B16.5
