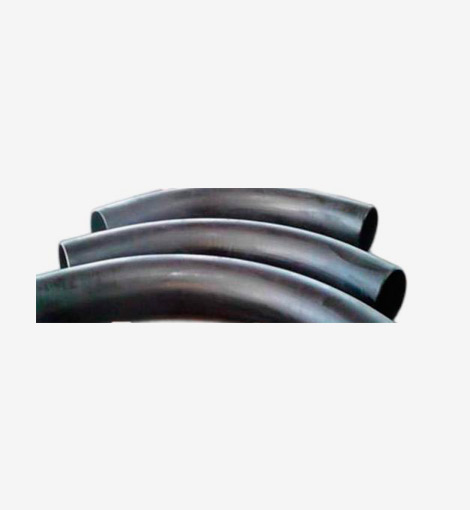

Elbow Pipe

Elbow Pipe

MstnLand's series of elbow pipes are used to change the direction of pipes. According to its radius of curvature, R value less than or equal to 1.5 times of pipe diameter belongs to elbow, greater than 1.5 times of pipe diameter belongs to elbow pipe.


According to the Angle, there are 45°, 90° and 180° three most commonly used, in addition, according to the engineering needs of 15°, 30°, 60° and other abnormal Angle Elbow for different materials or wall thickness to choose different molding process.

CONTACT

Body material:

Carbon steel, Alloy steel, Stainless steel

Size range:

Seamless elbow:1/2"-24", DN21.34-DN610

Slotted elbow:1/2"-56", DN21.34-DN1422

Radius of curvature :

R=2D-20D

Wall thickness rating:

SCH5S-SCH160, 1.65mm-59.54mm

End connection:

Threaded / Welded / Socket weld

Applicable industry:

Chemical & Petrochemical,

Oil & Gas,

Mining & Minerals,

Power generation,

Water & Water treatment,

General industrial,

Municipal,

Heating & Ventilation,

Marine & Offshore,

Pulp & Paper.

Design & Manufacture:

ASME, ANSI, DIN, JIS, ISO, GOST, GB.
