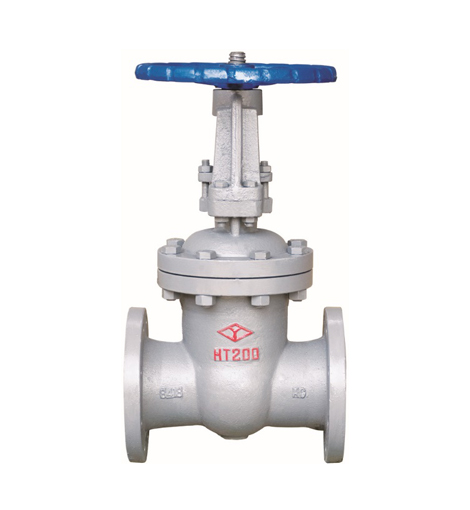

Carbon Steel Wedge Gate Valve

Name: Carbon Steel Wedge Gate Valve
Brand: MstnLand International Company

MstnLand's series of cast steel wedge gate valves are mainly used to cut off or put through the medium flow in equipment or pipelines, not allowed for regulating the medium flow.

CONTACT

Product Specifications

Downloads

Body material:	WCB
Size range:	DN50～600
Pressure rating:	4.0～6.4MPa
Operating temperature:	-29～425℃
End connection:	Flanged
Applicable medium:	Water, Steam, Oil
Mode of operation:	Manual
Applicable industry:	Chemical & Petrochemical，Oil & Gas， Mining & Minerals，Power generation， Water & Water Treatment，Pulp & Paper， Municipal，Heating & Ventilation
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB.
