API602/ ASME Forged Steel Flanged Globe Valve

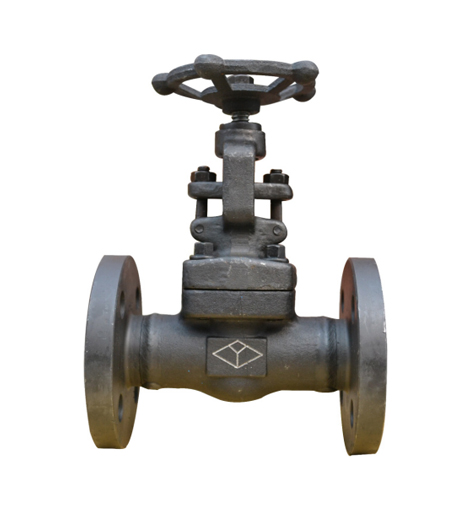

Name: API602/ ASME Forged Steel Flanged Globe Valve
Brand: MstnLand International Company

MstnLand's series of forged steel flanged globe valves are mainly used in petroleum, petrochemical and power generation industries to cut off or put through the medium flow in pipelines, so as to ensure the normal operation of systems.

CONTACT

Types of API602/ ASME Forged Steel Flanged Globe Valve

Downloads

Body material:	A105N/A350 LF2/A182 F11/A182 F22/A182 F304/A182 F316/A182 F304L/A182 F316L
Size range:	½＂～2＂
Pressure rating:	Class 150lb～1500lb
Operating temperature:	-29～538℃
End connection:	Flanged
Applicable medium:	Water, Steam, Oil, Gas, etc.
Mode of operation:	Manual
Applicable industry:	Chemical & Petrochemical，Oil & Gas， Mining & Minerals，Power generation， Water & Water Treatment，Pulp & Paper， Municipal，Heating & Ventilation
Design & Manufacture:	API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB
