Introduction to 1 Piece & 2 Piece & 3 Piece Ball Valves


Ball valves are widely used in many commercial, institutional and industrial areas where it requires the isolation of system parts, or just to regulate the on-off state of the system. The product variants are almost uncountable, so they are available to accommodate almost any application. If you want to have a rough knowledge for a ball valve, the faucet in your kitchen would be a good start. Ball valves come in three common configurations, one-piece style, two-piece and three-piece. The following are the differences between them and some precautions:


One Piece VS Two piece Ball Valve


One-piece ball valves are formed by a single piece of material. This construction exhibits strong sealing properties. The valve internals and seals are recessed through either end. The simple one-piece body often results in a lower cost than other versions. Once the valve is in service, it cannot be repaired unless the entire valve assembly is removed from the piping system. One-piece ball valves, however, are inexpensive and usually do not need maintenance.


Two-piece ball valve consists by two separate parts which are connected by either a threaded or bolted and flanged assembly. Such a valve typically contains the end connections and the body, and the other part is the second part that holds the trim and the second end connection. The configuration trades the risks of potential leakage at the joint for trim's maintainability.

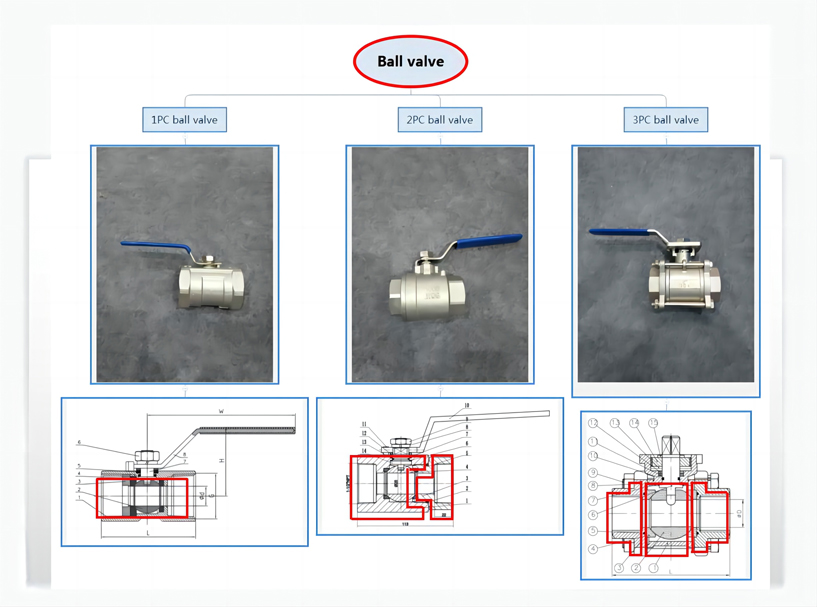

Introduction to 1 Piece & 2 Piece & 3 Piece Ball Valves


Two Piece VS Three Piece Ball Valve


Three-piece ball valve consists of two end caps and a valve body. The end caps can be welded, threaded, or flanged to the piping on either side. This kind of ball valve will be more expensive than either of the other two types. However, it allows the valve body and valve internals to be removed from the piping system while keeping the piping in place, an option that may be valuable for many applications. As with the two-piece type, this configuration can provide full port and bi-directional shutoff capability.


The big difference between the two is that the body on the 3 piece valve can be taken out without disturbing the two end caps. A two-piece ball valve doesn't often allow this to happen, and it's not possible at all with a one piece ball valve. There's also a price difference.


Introduction to 1 Piece & 2 Piece & 3 Piece Ball Valves
